Project Aurora, post 6, (Blog Assignment 3) Light / Fog of war around the player

So the feature I have been working on this week is the light effect for our light bulb/Fishing rod that light up an area around the player.

This was something I never done before so first I broke down the problem to the basics.
I need a black filter to make everything on screen black and I need to be able to cut through it somehow to show what’s under it.

So I draw out the filter as a sprite that covers the whole screen, Done!
Then I read up on SFML to see if there was some information there abouthow to cut through other sprites and I found some people with similar problems and they had solved it in many different ways. One guy had a flashlight solution that seemed simple enough so I went ahead with trying to implement some of what he done into our game.  The reason I went with his example is because it was fairly easy to understand and wouldn’t take a lot of time to code.

He used something called sf::RenderTexture. With it you can “draw” stuff without showing it on the screen. like a secret drawing. If you give that drawn stuff to a sprite you can then draw the sprite out on screen using our normal DrawManager..

So first I need a circle that will be the ring of light that cuts through the darkness.
I don’t want a clear cut. I want you to see most in the middle and then it gets darker towards the edges of the circle. So when I created the circle I draw it out on another of these sf::RenderTextures one circle after another, each new circle smaller and with different Alpha value than the previous circle. With this way I created the layered circle I wanted.

I then draw this layered circle on to the drawing / sf::RenderTexture that holds the black filter. After that the black filter sprite gets that sf::RenderTexture/secret drawing loaded into it and is then drawn out on the window.

GetFilterTexture()->clear();
if(p_GameObjMgr->m_pxPlayer->GetLightSource()->GetLightStatus() == true )
{
GetFilterTexture()->draw(*p_GameObjMgr->m_pxPlayer->GetLightSource()->GetLightCircle(), sf::BlendNone );
}
GetFilterTexture()->display();

In this code example I clear my secret drawing. draw out my layered circle and the “save” that.
The “GetFilterTexture()->display();”  don’t draw it out on screen but only draw it out on the texture surface.
See it as saving your picture or something. Drawing it out on the screeen is done later in the code.

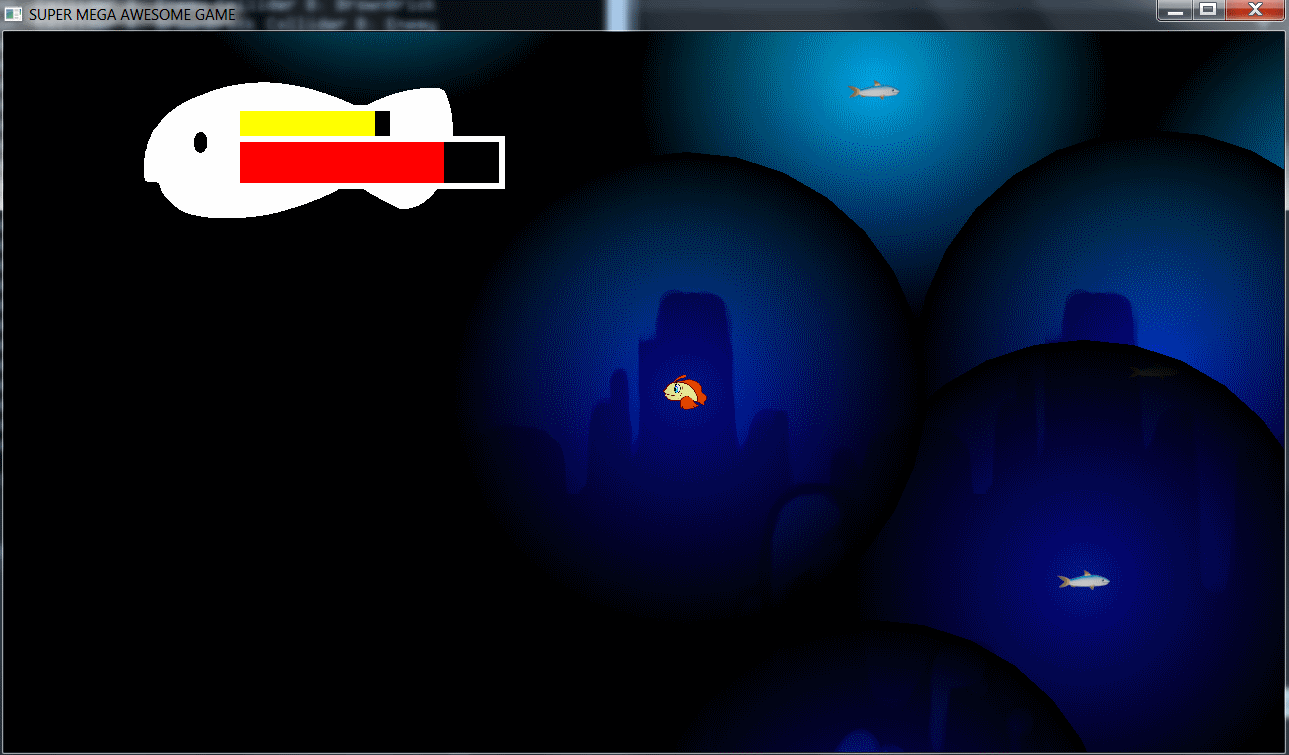

As you can see on the screenshot the other fish has a light around them as well. That’s only for testing at the moment and work in progress, I want to be able to merge two light circles if they overlap for other game features that will let us light up some areas of the game world.

This feature was easy enough to understand but I bumped into so many problems adapting this code into our game due to much code we have is hard coded with numeric limits. And with that there was a problem when moving around on the screen because the world limits was hard coded this way and so was some starting positions and sizes of the player and whatnot. The black filter was the easiest to add to the game but the hardest to understand( because of how the camera is handled).

The black filter can be made really big to cover the whole world or just follow the camera. I chose the solution making it big as the screen and follow the camera because that’s more dynamic and can be used if the game world is made bigger or smaller. With my solution we don’t have to resize the filter all the time. It does that automatic after the screen resolution.
Since all the problems I had was because of the camera and how moving around works in our game I will cover that in another post about the camera and not go deeper into those problems here.
